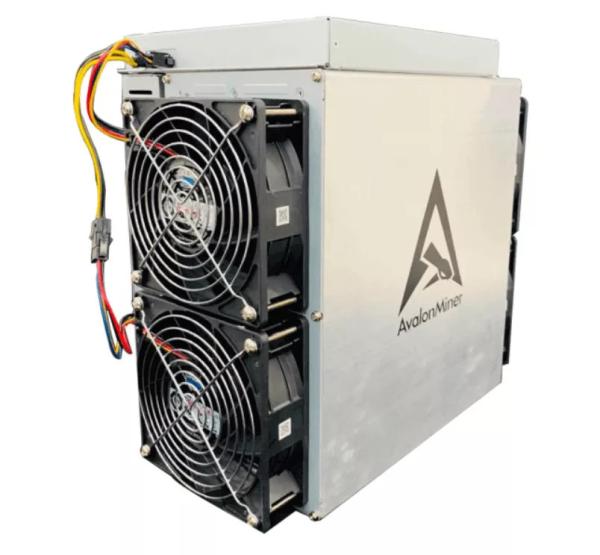

BTC Miner Machinebrand-new Canaan Avalon 1246 93T
Product Description
Stable operation, high-efficiency heat dissipation of front and
rear fans, self-regulating mining guard system, 93T long-time
operation, same as the official parameters. Ultra-low energy
consumption ratio, high performance 38.8 J/T Energy consumption
ratio in the international leading.
specifications
prodduct name:
| Canaan Avalon 1246 93T | Keywords: | BTC Miner Machine |
Manufacturer:
| Canaan Avalon | power | 3230w |
Size | (L)442mm*(W)405mm*(H)306mm | Noise: | ≤75dB |
working temperature | 0℃~40℃ | weight | 14.8kg |
Description
Extremely simple installation, plug and play, one-step setup, and a
large number of mining machines can cooperate with cluster software
to facilitate operation and maintenance. The controller has
built-in AI chip, which has strong security performance. Combined
with the running system, it can automatically identify malicious
viruses and prevent the mining machine's computing power from being
stolen.
Check the connection and power of the miner
(1) before the connection and power of the miner, shake the miner
according to the warning sign on the side of the miner, check if
any radiator or other components fall off, make sure there are no
radiators or other time to fall off before wiring and power up. (2)
the miner is connected to the power cord, the net port is connected
to the switch, the power control cord, the fan, the control cord,
the switch board control cord and the fan control cord are not
loose, and the copper bar is connected correctly before the miner
is powered up. Note: 1) when the copper bar is connected to the
computer power board, the positive and negative poles of the copper
bar can not be misconnected, and the screw gasket of the fixed
copper bar must be aligned parallel to the edge of the copper bar,
and the fixed screw must be tightened, otherwise, there is a risk
of burning out the calculator board, the Control Board or the power
supply. 2) the power control line between the control board and the
power supply must be connected, otherwise, the power supply voltage
can not be controlled, resulting in the problem of low computing
power board. 3) the control panel must be reliably connected to the
fan line. If the fan line falls off or is not connected properly,
it may cause the miner to be unable to cool down.
